LADDER RUNGS PERFORATED TOP
IN MILD STEEL AND STAINLESS STEEL

MIDGRID Ladder Rungs have Punched Holes that provide Excellent Grip and are Perforated for
Drainage. No need to punch holes in Ladder Stringers, MIDGRID Ladder Rungs are easily cut to length
and can simply be welded straight over existing 20 mm Dia. Round Rungs, making them Cost Effective compared to other solutions. Ideal for use in Slippery, Oily and Icy Conditions.


We Stock Single Hole and Double Hole Ladder Rungs, and these are available in Mild Steel and Stainless Steel, Ideal for Access Ladders, Cat Ladders, Road Tanker Ladders, ISO Tanks and 4x4 Vehicles.

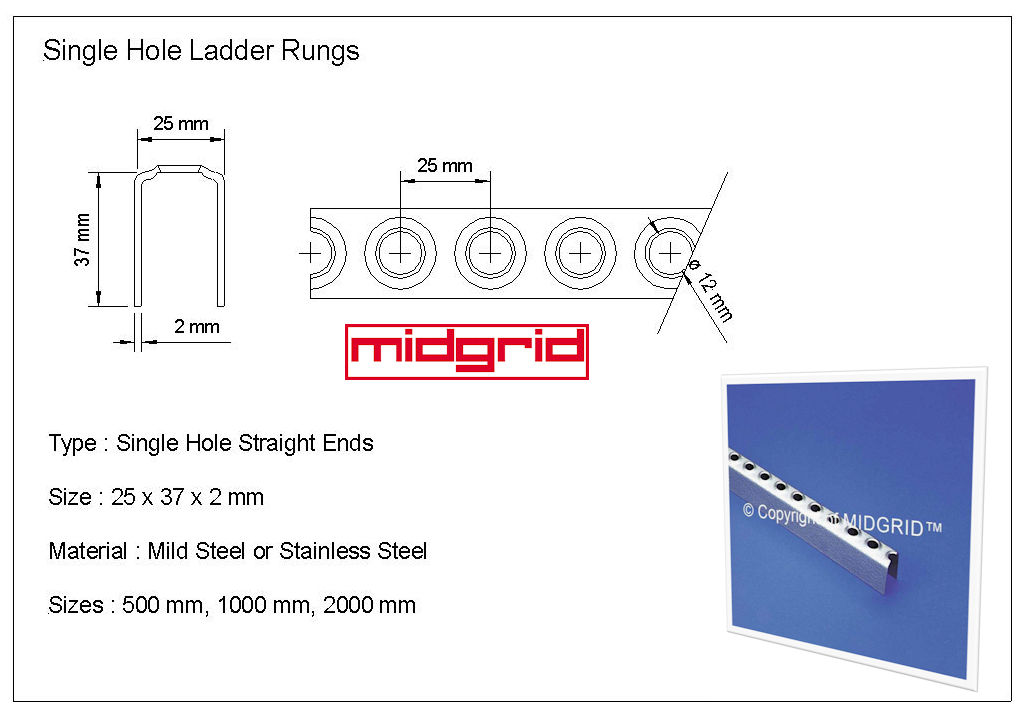

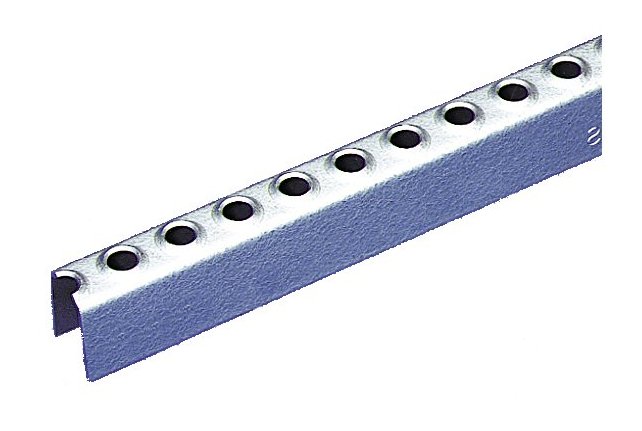

Single Hole Ladder Rung Detail
Size Self Colour   Galvanised   Stainless Steel   Aluminium
Price   Price   Price   Price
2000 mm £ P.O.A   £ P.O.A.   £ P.O.A.   £ P.O.A.
Single Hole Rung Dimensions are 25 mm x 37 mm x 2 mm (See Diagram)

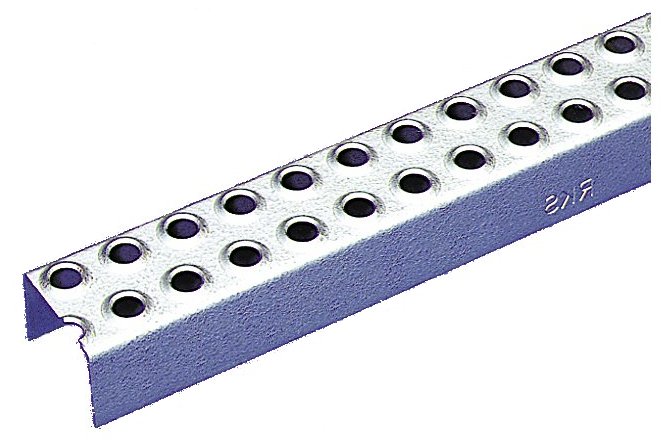

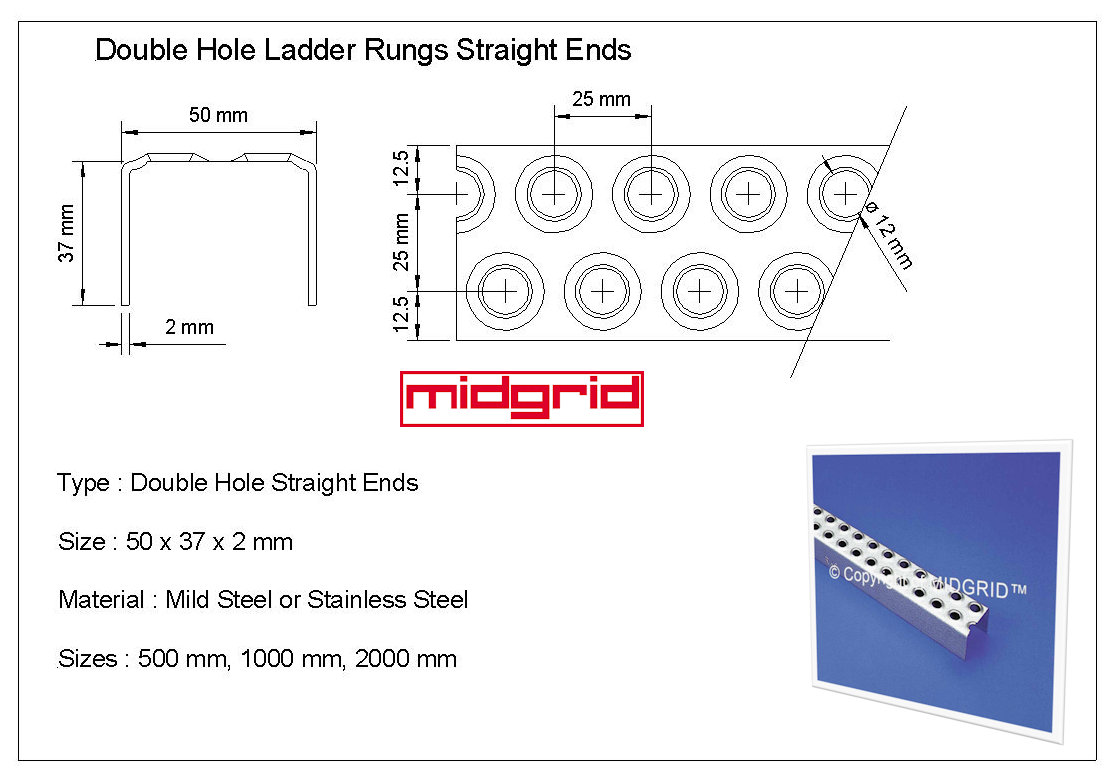

Double Hole Ladder Rung Detail - Straight Ends
Size Self Colour   Galvanised   Stainless Steel   Aluminium
Price   Price   Price   Price
2000 mm £ P.O.A.   £ P.O.A.   £ P.O.A.   £ P.O.A.
500 mm £ P.O.A.   £ P.O.A.   £ P.O.A.   £ P.O.A.

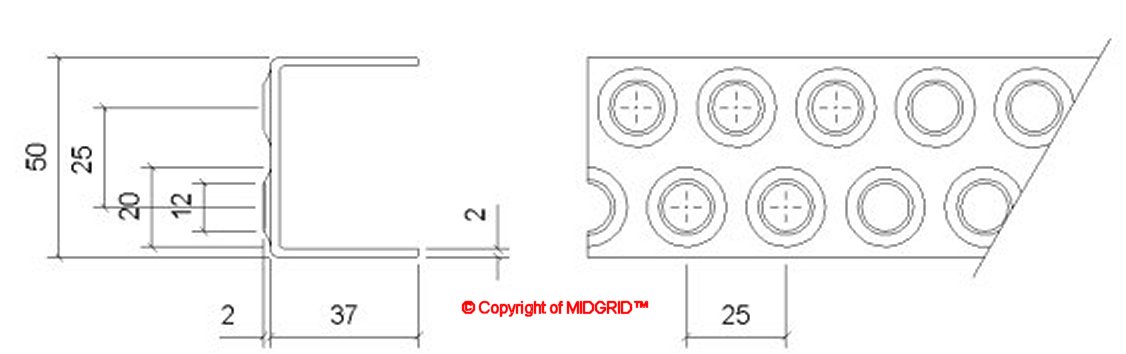

Double Hole Rung Dimensions are 50 mm x 37 mm x 2 mm (See Diagram)

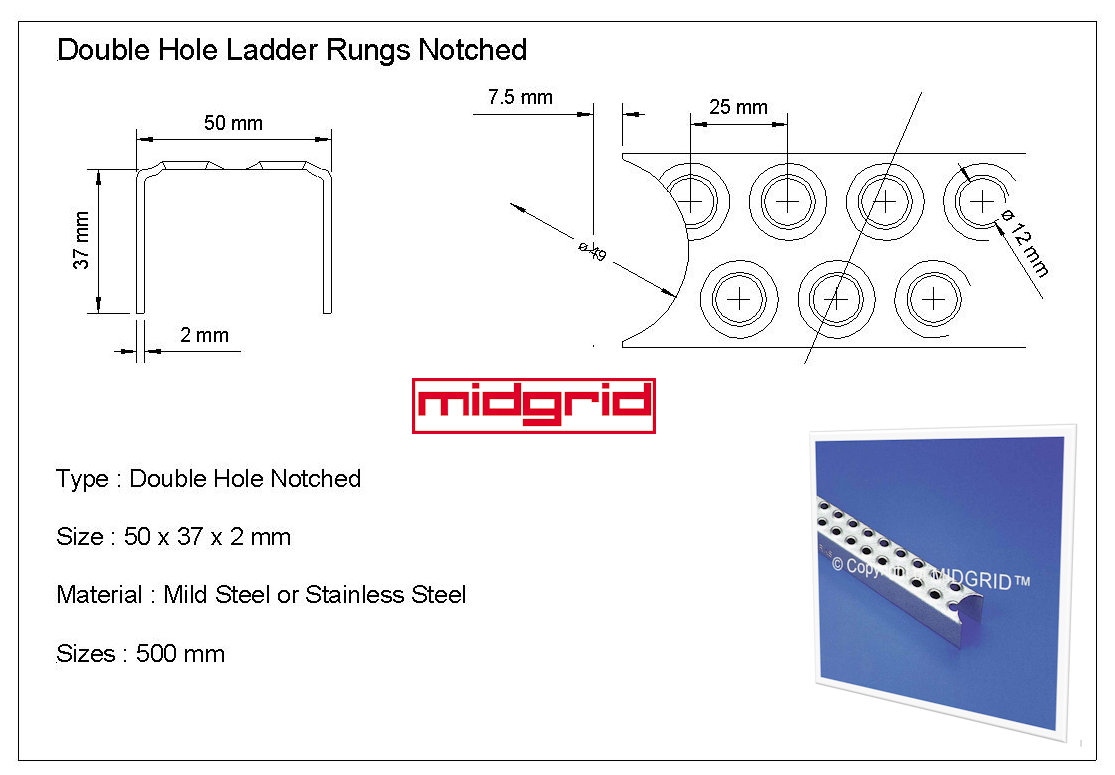

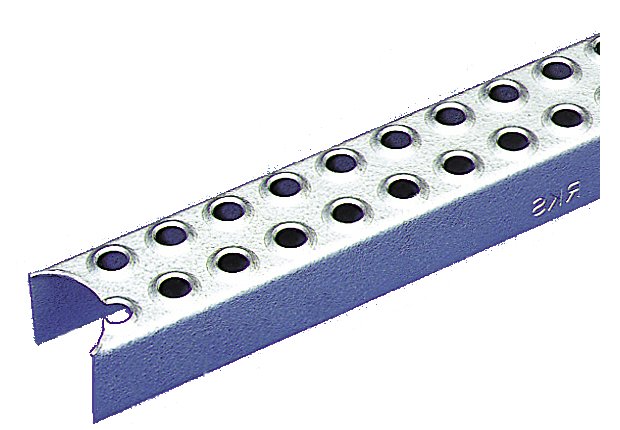

Double Hole Ladder Rung Detail - Notched Ends to suit 48.3 mm O/D Tube
Size Self Colour   Galvanised   Stainless Steel   Aluminium
Price   Price   Price   Price
500 mm £ P.O.A.   £ P.O.A.   £ P.O.A   £ P.O.A.
Double Hole Rung Dimensions are 50 mm x 37 mm x 2 mm (See Diagram)
Actual Length of Rung is 485 mm (To fit 500 mm Centres of Tubes).

Weight Table for Ladder Rungs
Type Size Mild Steel Mild Steel Stainless Aluminium
    Self Colour Galv`d Steel
Single Hole 300 0.41 Kgs 0.45 Kgs 0.45 Kgs 0.45 Kgs
  2000 2.72 Kgs 2.99 Kgs 2.58 Kgs 2.99 Kgs
Double Hole 500 0.84 Kgs 0.92 Kgs 0.92 Kgs 0.92 Kgs
  2000 3.56 Kgs 3.69 Kgs 3.69 Kgs 3.69 Kgs

All Prices are Ex. VAT, Ex. Works, E. & O.E.
