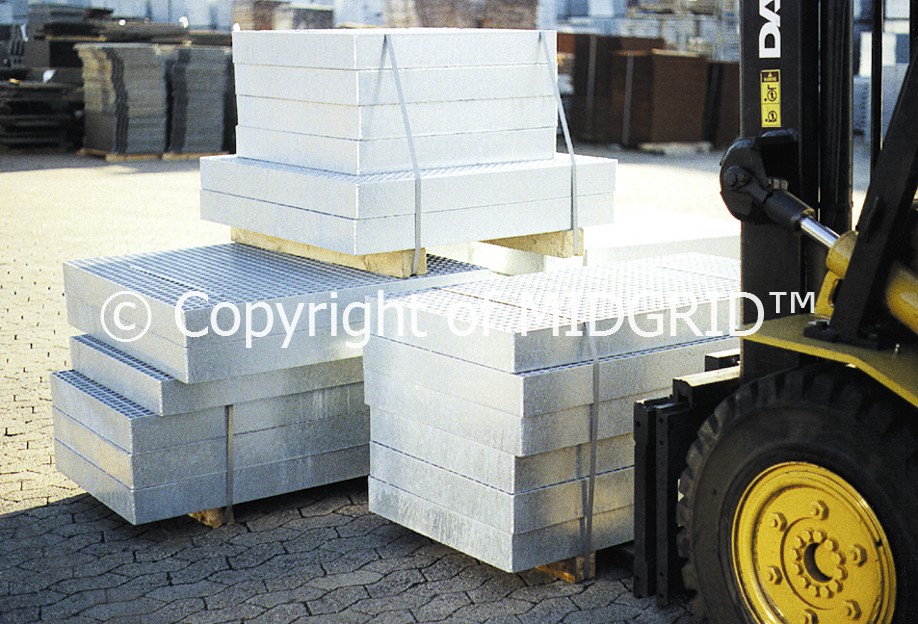

Heavy Duty Pressed Gratings are produced using Deep Flat Bars. The Bearing Bars are interlocked with Transverse Bars to produce a Robust Grating capable of taking heavy loads such as Cars, Vans, Lorries and Fork-Lift Trucks. Heavy Gratings can be produced with Bearing Bars upto 150x5mm.

'Plain or Serrated'
PR Pressed Gratings can be supplied as Plain or Serrated Top, and there is also a choice of different Serrations to
Choose from
* PR/S1 (Bearing Bars Serrated Only)
* PR/S2 (Both Bearing Bars & Transverse Bars Serrated)
* PR/S3 (Transverse Bars Serrated Only)

'Materials'
Gratings are available from ourselves in :
* Mild Steel S235JR (Self Colour or Galvanised)
* Stainless Steel Grades 304 (V2A) or 316 (V4A)
* Aluminium
(Note Gratings can also be Powder Coated after Galvanising. This is not a service that we offer, but we do
have specialists that we certainly can recommend).

'For your Safety'
It is always critically important to make sure the Bearing Bars are spanning in the correct direction, and especially so when the gratings are 1000 mm x 1000 mm.
Please click on this link 'The Importance of Spanning Gratings Correctly' for more details.
