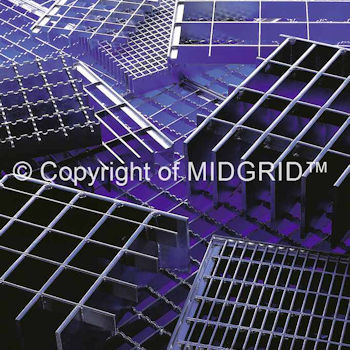

Our full range of patterns and section can be seen on Pages 12 & 13 of our Brochure http://www/midgrid.co.uk/Brochure.html.

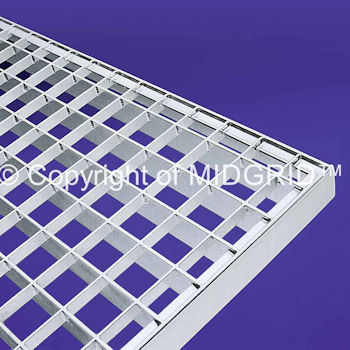

PR Pressed Gratings are normally supplied as Fabricated Panels, incorporating any cutouts or notches at the Fabrication stage. A T-Profile border or Flat

Banding is then fitted around the Panel to provide Rigidity and to prevent
Inter-Meshing.

'Plain or Serrated'

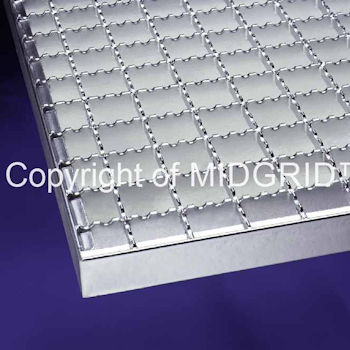

PR Pressed Gratings can be supplied as Plain or Serrated Top, and there is also a choice of different Serrations to Choose from

* PR/S1 (Bearing Bars Serrated Only)
* PR/S2 (Both Bearing Bars & Transverse Bars Serrated)
* PR/S3 (Transverse Bars Serrated Only)

'Full Gratings'( A.K.A. Carton Gratings, Egg-Crate, Egg-Box and Ceiling Gratings).These gratings are produced so that both the Bearing Bar and Transverse bar are of an equal height / depth, and can be supplied in Mild Steel, Stainless Steel and Aluminium.

Gratings designated with a 'C' in our manufacturing programme are possible.

'Heavy Duty Gratings'
Heavy Duty Pressed Gratings are produced using Deep Flat Bars. The Bearing Bars are interlocked with Transverse Bars to produce a Robust Grating capable of taking heavy loads such as Cars, Vans, Lorries and Fork-Lift Trucks.

Heavy Gratings can be produced with Bearing Bars upto 150x5mm.
