FABRICATED STEEL GRATINGS /
OPEN MESH STEEL FLOORING TYPE 'SP'

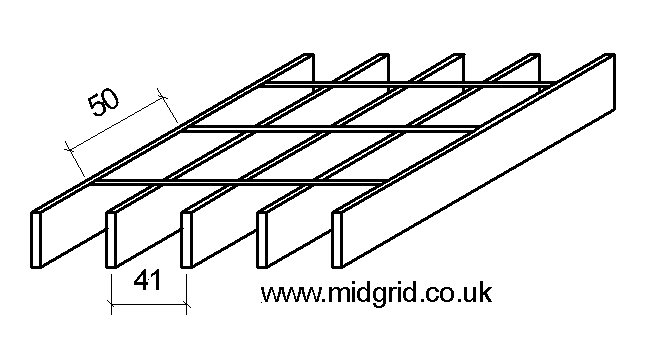

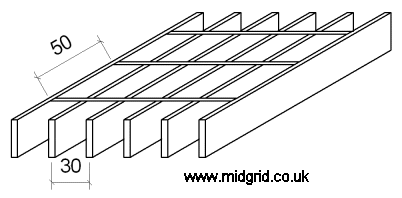

Our Fabricated Open Mesh Steel Flooring / Gratings are a Rectangular or Square Pattern Grating constructed using Flat bars stood on edge, and 5 mm twisted Transverse bars which are forged welded together under high pressure resulting in a One-Piece Construction.
These Gratings provide excellent Grip, Drainage, Ventillation, and Passage of Light.
SP Welded Gratings, can be cut and shaped to suit your individual requirments,
and can incorporate
'Kick Plates' around Columns and Vessels for instance.
'Plain or Serrated'
SP Welded Gratings can be supplied as Plain or Serrated Top, and there is also a choice of different Serrations to
Choose from : SP/S1 - Sharp Serration
'Offshore Type'
For 'Offshore' requirements, we can offer our SPSU Gratings which have Serrated
Bearing Bars, and additional
twisted bars running between bearing bars to comply
with the DET NORSKE VERITAS 20 mm Ball Test.
* SPSU AE with One Twisted Bar running between Bearing Bars
* SPSU
CE with Two Twisted Bars running between Bearing Bars
'For your Safety'
It is always critically important to make sure the Bearing Bars are spanning in the correct direction, and especially
so where gratings are 1000 mm x 1000 mm.
'Materials'
Gratings are available from ourselves in :
* Mild Steel S235JR (Self Colour or Galvanised)
* Stainless Steel Grades 304 (V2A) or 316 (V4A)
(Note Gratings can also be Powder Coated after Galvanising.
Whilst this is not a service
that we offer ourselves, we do
have specialists that we certainly can recommend).
