SP Welded Steel Gratings


MIDGRID Open Mesh Steel Flooring 'SP-Welded' Gratings can be supplied in Plain Top or Serrated Top Surfaces and We can provide a range of over 400 Different Combinations of Meshes and Bearing Bars.    Gratings can be fabricated to suit your required dimensions and we can also incorporate Cut-Outs and Kick Plates, as well as Deep Binding Bars. See our Terminology Page for further information.
Gratings can be supplied in Self Colour or Hot Dip Galvanised Finish. Gratings are manufactured in accordance with DIN 24537 and Galvanised in accordance with DIN 50976

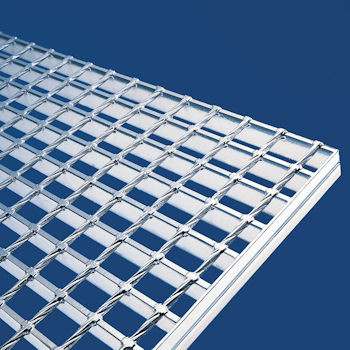

SP Welded Gratings
sp_welded_grating_medium1

Below is a range of meshes and bearing bar thicknesses. Please also click this link to show meshes available.

see Meshes Available

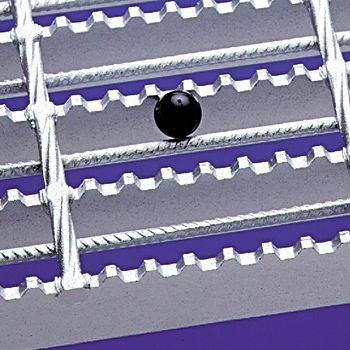

SPSU Ball Proof Gratings
spsu_ball_proof_grating

SPSU Gratings conform to 20 mm Ball-Proof standards.  We also have other ball-proof meshes within our range.

see Ball-Proof Gratings

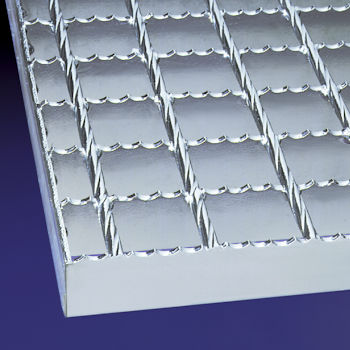

SP Serration Types
sp_welded_serrated_s4_grating

As well as Plain Top Gratings, we also have Three different Serration types for you to choose from. Please click for further details.

see Serration Types

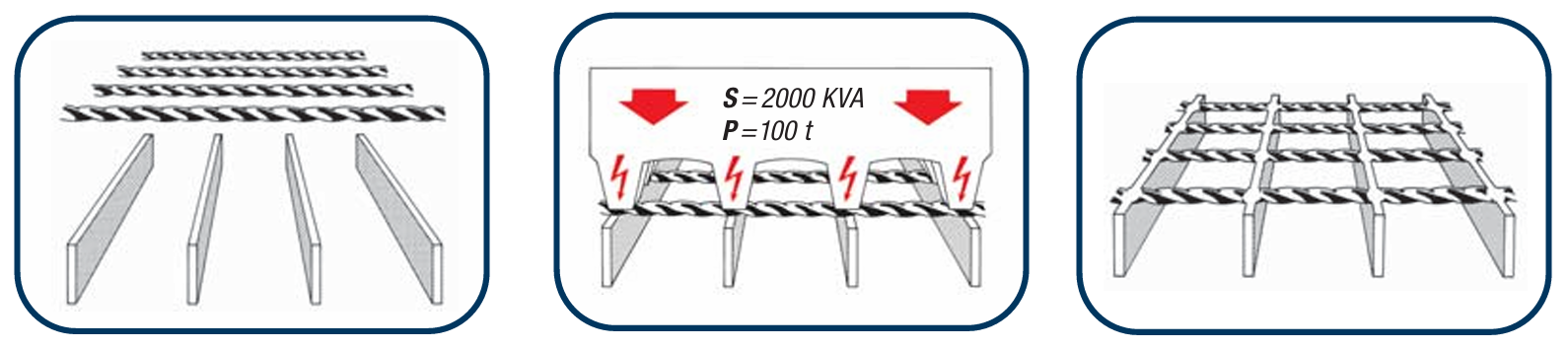

sp_construction_of_gratings MIDGRID SP Welded Grating have a Twisted Transverse bar forged welded to the Bearing Bars under high pressure at every intersection, resulting in a one-piece construction.

Our Most Popular Mesh Patterns include SP 41100, SP 4150, SP 34100, SP 3450, SP 3438, SP 30100, SP 3050, SP 3424
Click to Here to see our Full range of Mesh Patterns

25x2, 25x3, 25x5, 30x2, 30x3, 30x5, 35x3, 35x5, 40x3, 40x5, 50x3, 50x5

Mild Steel S235JR, Mild Steel S355JR

Self Colour, Hot Dip Galvanised
