SPSU Offshore / 20 mm Ball Proof Serrated Top Gratings

MIDGRID SPSU Offshore Gratings initially fall into Two categories SPSU 34100 and SPSU 43100.
Both types of grating share exactly the same range of Load Bearing Bars in terms of depths and thickness.  The main differences are highlighted below :

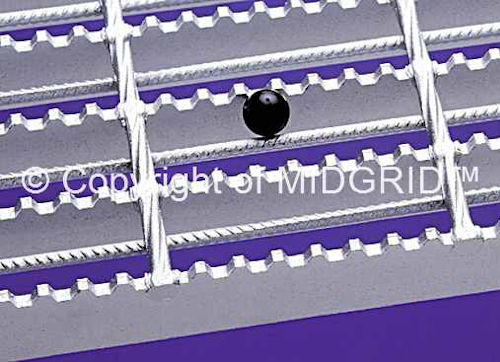

SPSU 34100 (AE) S6
Gratings are constructed with a Single Twisted Transverse Bar between the Load Bearing Bars to prevent a 20 mm Ball from passing through.  This type of grating can be made into panels upto 3000 mm in Length x 1000 mm in Width (Greater Lengths and Widths can be achieved if necessary).  We can also incorporate Square, Rectangular, Round and Mitred Cut-outs along with, Kick Plates and Deep Binding Bars where required. Fabricated panels are fitted with either a 2.5 mm Automatic profile banding or a Flat banding to match the Load Bearing Bar where specified.

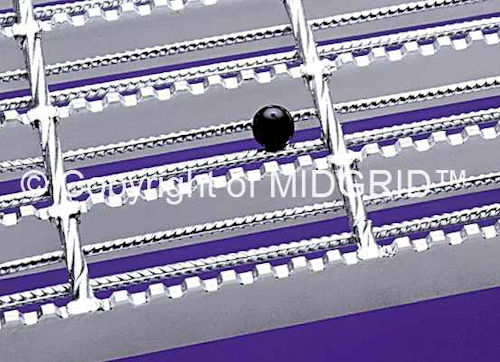

SPSU 43100 (CE) S6
Gratings are constructed with Two Twisted Transverse Bars between the Load Bearing Bars to prevent a 20 mm Ball from passing through.  This type of grating can be made into panels upto 3000 mm in Length x 1000 mm in Width (Greater Lengths and Widths can be achieved if necessary). We can also incorporate Square, Rectangular, Round and Mitred Cut-outs along with, Kick Plates and Deep Binding Bars where required. Fabricated panels are fitted with either a 2.5 mm Automatic profile banding or a Flat banding to match the Load Bearing Bar where specified.
We do also have addtional ball-proof grating meshes such as SP 3424 (AK) which will prevent 20 mm objects from passing through.

See our Terminology Page for further information.
